Topic 1 of 5

#Choose an appropriate grid

Use the smallest grid that shows the required information clearly. Larger grids reduce detail and can create unnecessary remote-view load.

NeedSuggested tile
Confirm visible playbackLiveview
Compare local timesClock
Watch overall fleet stateFleet health
Track one important screenLarge Liveview tile in a small grid
Topic 2 of 5

#Build a layout

Click-by-clickOpen a saved monitoring wall
MultiviewPreset
  1. 1
    Preset

    Choose the agreed site or event name. Do not edit the name.

  2. 2
    Selected / running

    Check how many sources are configured and how many are already running.

  3. 3
    Start all

    Press once only if the whole preset is required. Otherwise start one tile.

  4. 4
    Tiles

    Wait for each tile to become ready or show a useful error.

  5. 5
    Stop all

    Stop the views when monitoring is finished.

You are finished when the required tiles were checked and continuous views have been stopped when no longer needed.

Large grids use more network and player resources. Use the smallest preset that does the job.

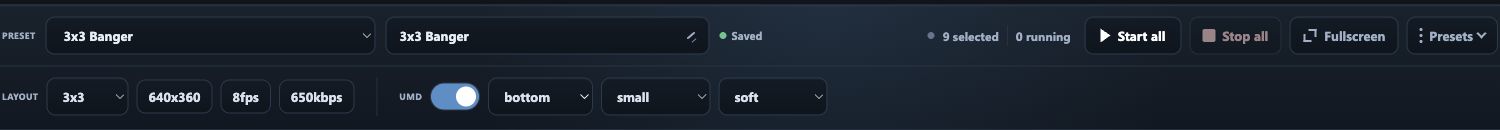

BrightBridge Multiview controls for presets, selected and running counts, grid size, stream quality and on-screen labels
The first row controls the saved preset and starts or stops its tiles. The second row controls grid density, stream quality and player-name labels. Keep the grid and bitrate only as large as the monitoring task needs.
  1. 1
    Choose a grid size.
  2. 2
    Select a tile and assign its type.
  3. 3
    For player tiles, choose the player by its verified label.
  4. 4
    Repeat only for the tiles needed by this monitoring purpose.
  5. 5
    Give the layout a clear shared name and save it.
Topic 3 of 5

#Operate the grid

  • Wait for tiles to establish before refreshing the whole page.
  • Use tile status messages to identify one failed source.
  • Open the player detail for investigation rather than troubleshooting inside the grid.
  • Stop or leave the grid when continuous monitoring is no longer needed.
Topic 4 of 5

#Maintain shared layouts

Topic 5 of 5

#If the grid becomes slow

  1. 1
    Reduce the number of continuous Liveview tiles.
  2. 2
    Replace visual tiles with clock or fleet-health tiles where possible.
  3. 3
    Check whether individual players are also slow in their detail views.
  4. 4
    Escalate a repeated site-wide issue with the layout name and time.
